With this option, different connections can communicate with one another. This feature uses NAT IP addressing.

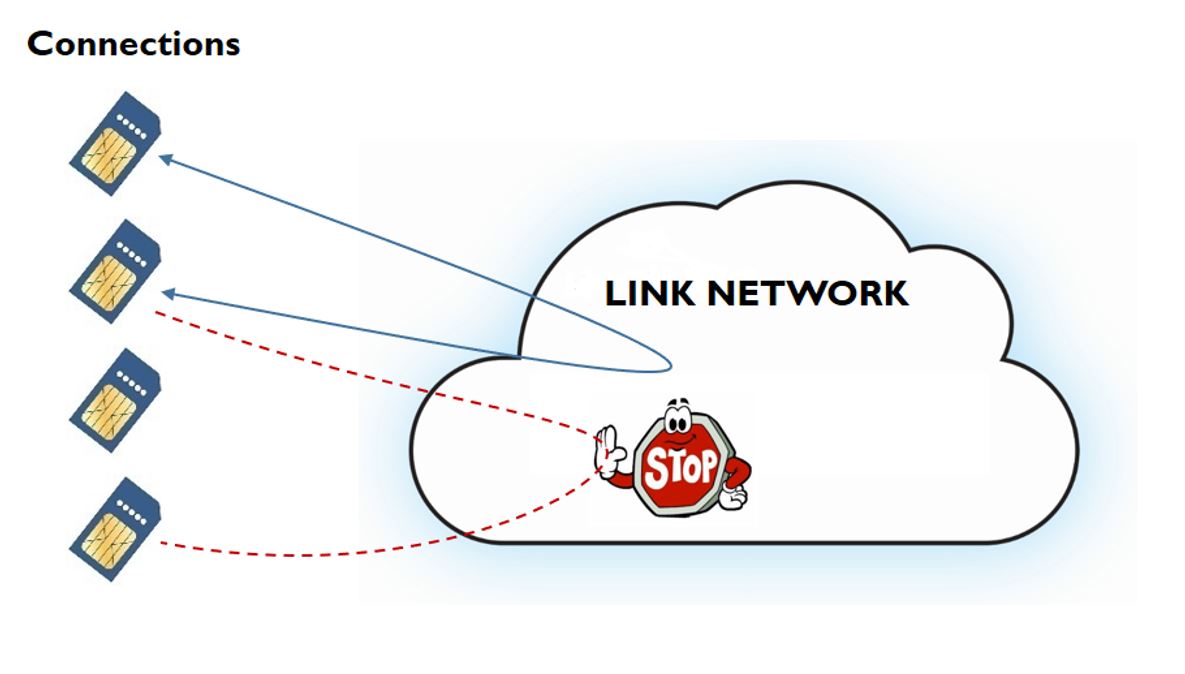

Figure 4, Connection to connection (P2P)
This policy uses alias addresses (NAT) between devices instead of the original address. By default, the value for the NAT prefix is set to 10. The alias address used for the communication is the same as the original address, but the first octet is exchanged with the NAT prefix.
If the NAT prefix is 240, this means that you use 100.84.63.130 (original address) from a Link user access and the alias address of 240.84.63.130 from another Link Connection.

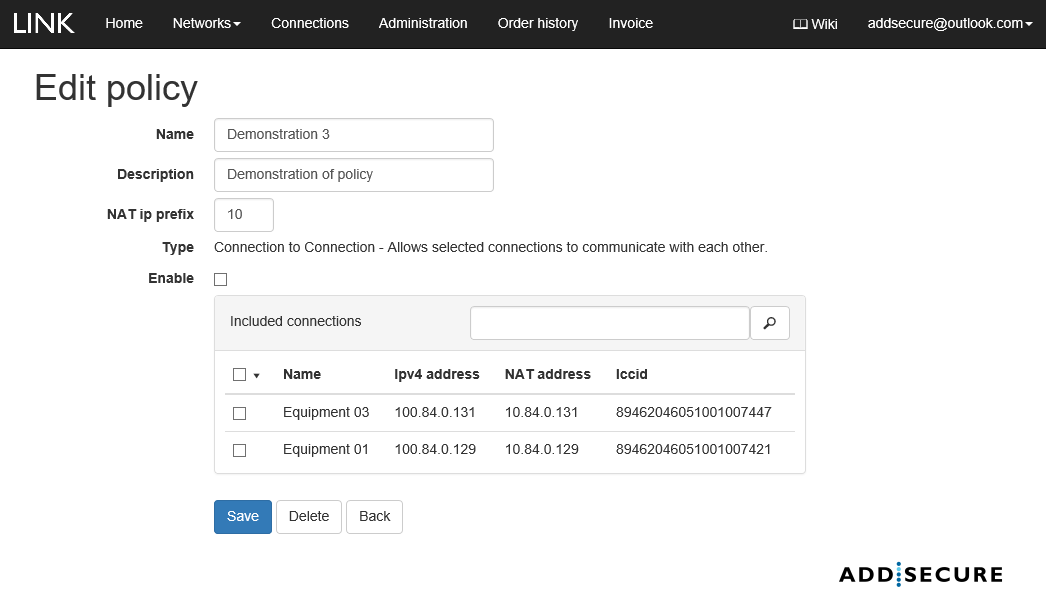

| Parameters to the policy rule: | ||
| Entity | Number | Value |
| Enable | 1 | True / False |
| Included connections | By selection | True / False |
| NAT ip prefix | 1 | 1-255 |
